Series 29: MACD

The Moving Average Convergence Divergence (MACD) is a popular trendfollowing momentum indicator used in technical analysis to identify changes in the strength, direction, momentum, and duration of a trend in a stock's price.

The MACD is based on the relationship between two moving averages of a stock's price and is displayed as a chart with three key components: the MACD Line, the Signal Line, and the Histogram. It is an unbounded indicator, meaning it does not have fixed upper or lower limits, unlike the Stochastic Oscillator.

How is the MACD Calculated?

The MACD is calculated using the following components:

MACD Line:

The MACD Line is the difference between the 12-day Exponential Moving Average (EMA) and the 26-day EMA.
Formula:
MACD Line = 12-day EMA - 26-day EMA

Signal Line:

The Signal Line is a 9-day EMA of the MACD Line. It acts as a trigger for buy and sell signals.
Formula:
Signal Line = 9-day EMA of MACD Line

Histogram: The Histogram represents the difference between the MACD Line and the Signal Line. It visually shows the momentum of the trend.
Formula:
Histogram = MACD Line - Signal Line

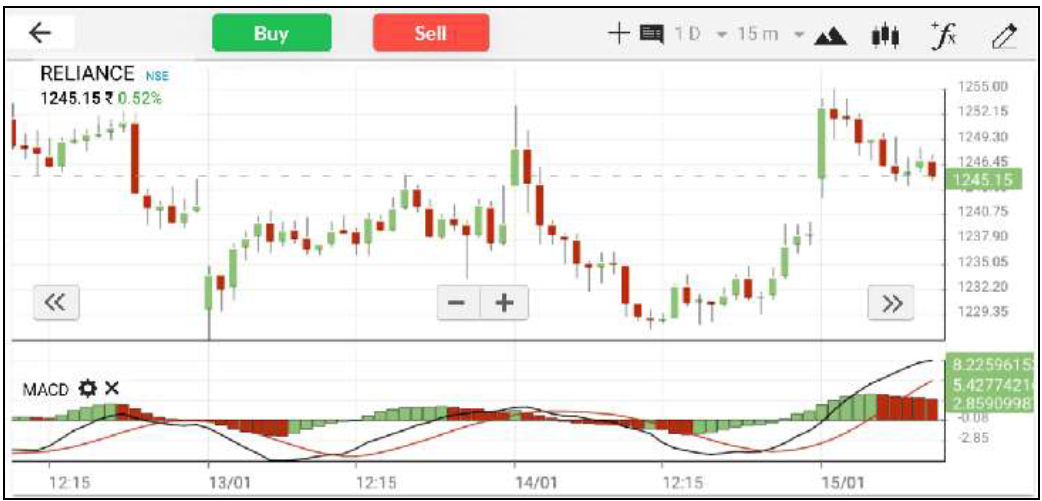

Example: Reliance Industries

Step 1: Calculate the 12-day and 26-day EMAs
Assume 12-day EMA = ₹1245 and 26-day EMA = ₹1230
Step 2: Calculate the MACD Line
Using the formula:
MACD Line = 12-day EMA - 26-day EMA
MACD Line = ₹1245 - ₹1230 = ₹15
Step 3: Calculate the Signal Line
Assume the 9-day EMA of the MACD Line is:
Signal Line = ₹12
Step 4: Calculate the Histogram
Using the formula:
Histogram = MACD Line - Signal Line
Histogram = ₹15 - ₹12 = ₹3
Thus, for Day 10:
MACD Line = ₹15
Signal Line = ₹12
Histogram = ₹3

How to Interpret the MACD?

1. Crossovers:

• ● Bullish Crossover: When the MACD Line crosses above the Signal Line, it indicates a potential upward momentum.
• ● Bearish Crossover: When the MACD Line crosses below the Signal Line, it indicates a potential downward momentum.

2. Histogram Analysis:

• ● A positive histogram (MACD Line above Signal Line) indicates bullish momentum.
• ● A negative histogram (MACD Line below Signal Line) indicates bearish momentum.
• ● The size of the histogram bars reflects the strength of the momentum.

3. Zero Line Crossovers:

• ● When the MACD Line crosses above the zero line, it signals the start of a bullish trend.
• ● When the MACD Line crosses below the zero line, it signals the start of a bearish trend.

Key Points to Remember:

• ● The MACD is a lagging indicator because it is based on historical price data. It works best in trending markets and may give false signals in sideways or choppy markets.
• ● The MACD is most effective when used in conjunction with other technical indicators, such as the Relative Strength Index (RSI) or support and resistance levels, to confirm signals.

The MACD does not have overbought or oversold levels, unlike the Stochastic Oscillator.
